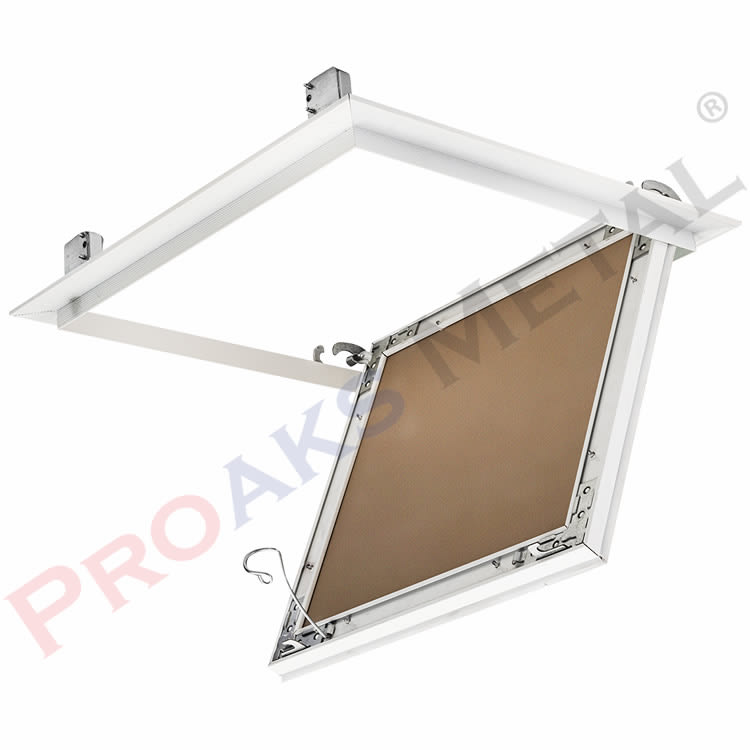

Proizo Access panels are applied to the installation areas in an overhead manner. Proizo Access panels prevent dust, dirt, light, etc. from passing through thanks to the special wick between the detachable inner and outer frame. It ensures that the applied area is sterile. The inner part of the internal frames can be produced optionally as plasterboard, aluminum panel or square honeycomb.

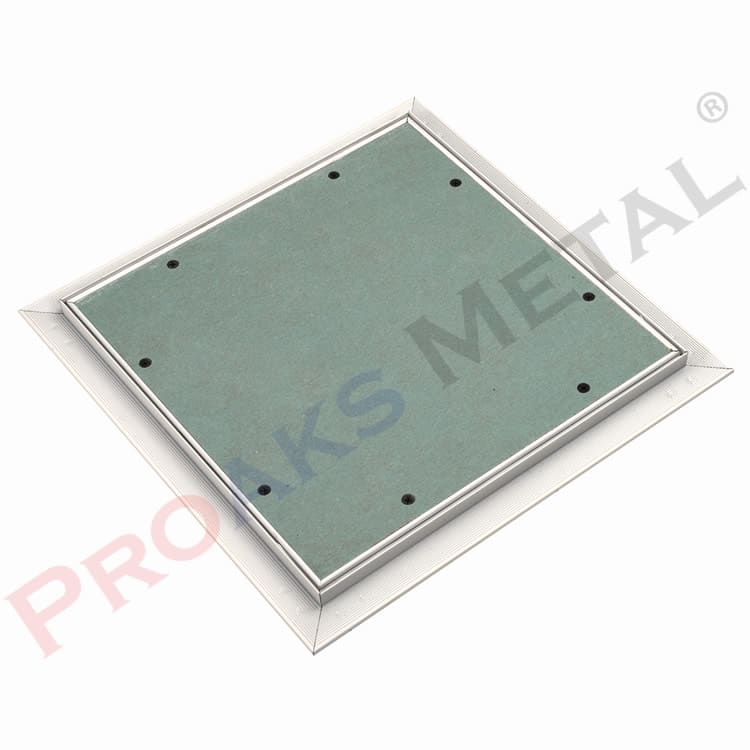

Firstly features of Proizo plasterboard touch access panel.
Proizo Plaster Plate Revision Cover Specifications
- Aluminum inside and outside frame,
- Fitting between the inner cover and the outer cover with special channel design providing dust and light isolation,

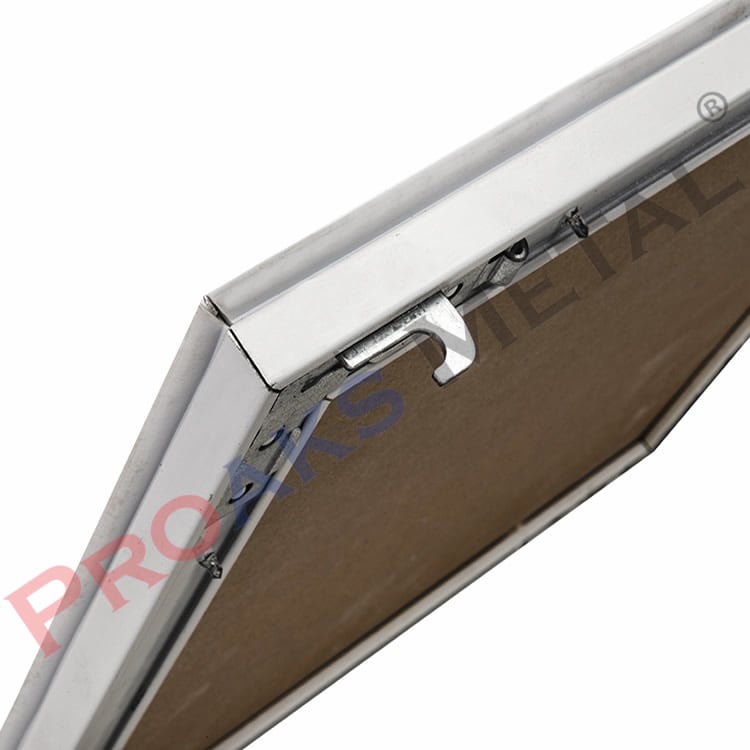

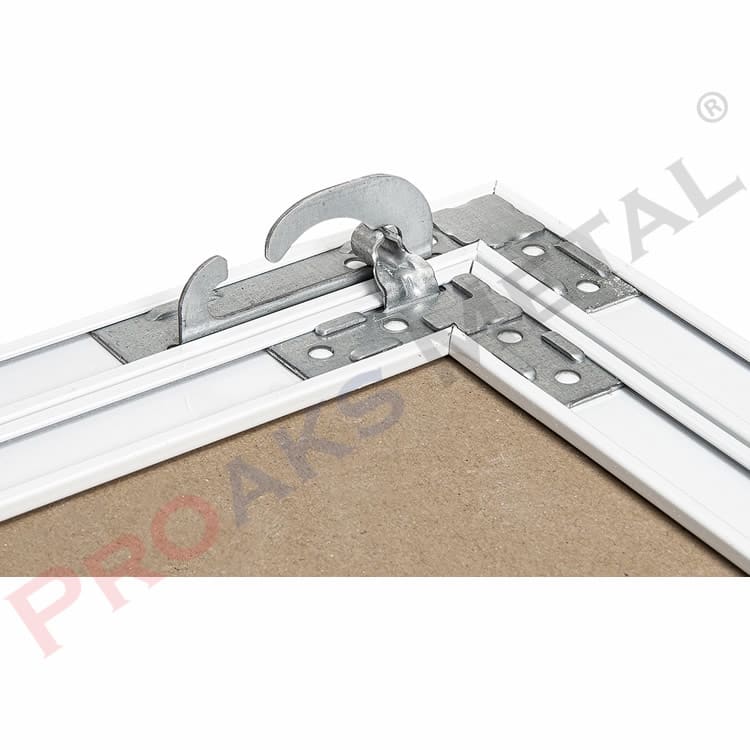

- Also removable switch system for touch opening,
- Fully removable inner cover from outer cover,

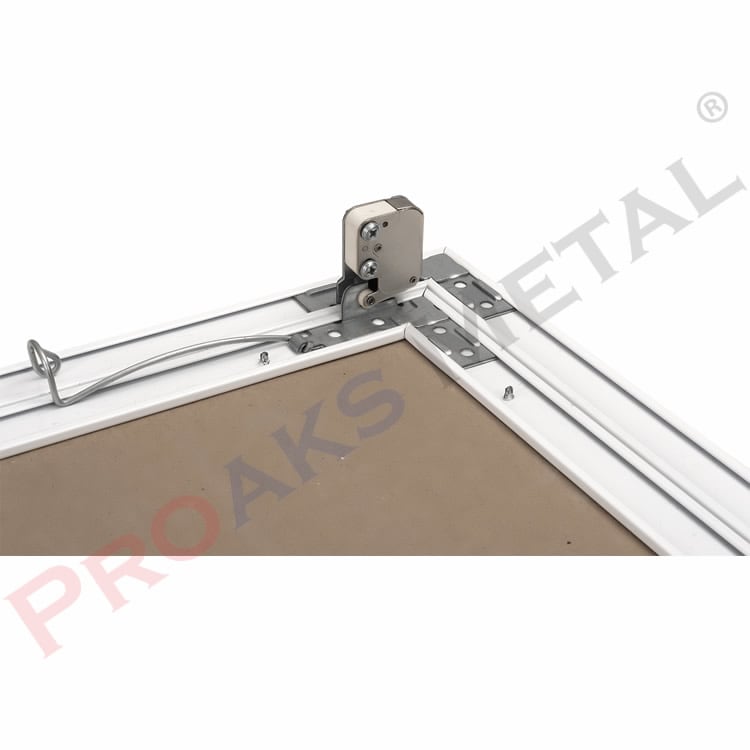

- However wire system to keep the inner cover constant at a certain angle.
| Order Code | Dimensions | Mounting Cover Dimensions | Outer Cover Dimensions | Inner Cover Dimensions | Frame Height | Gross Weight (gr.) | Pieces |
|---|---|---|---|---|---|---|---|
| A1xB1 | A2xB2 | A3xB3 | T1xT2 | ||||
| 4020 | 200×200 | 198×198 | 244×244 | 194×194 | 12,5×60 | 785 g | 10 pcs |
| 4030 | 300×300 | 298×298 | 344×344 | 294×294 | 12,5×60 | 1250 g | 10 pcs |
| 4036 | 300×600 | 298×598 | 344×644 | 294×594 | 12,5×60 | 2300 g | 10 pcs |
| 4040 | 400×400 | 398×398 | 444×444 | 394×394 | 12,5×60 | 1950 g | 10 pcs |
| 4046 | 400×600 | 398×598 | 444×644 | 394×594 | 12,5×60 | 2780 g | 8 pcs |
| 4045 | 450×450 | 448×448 | 494×494 | 444×444 | 12,5×60 | 2375 g | 8 pcs |
| 4050 | 500×500 | 498×498 | 544×544 | 494×494 | 12,5×60 | 2800 g | 8 pcs |
| 4060 | 600×600 | 598×598 | 644×644 | 594×594 | 12,5×60 | 3750 g | 6 pcs |
Pallet Content
200×200 mm. Pallet Quantity 560 pcs. Pallet Size 80 x 120 x 200 cm (Width x Length x Height)
300×300 mm. Pallet Quantity 540 pcs. Pallet Size 110 x 130 x 225 cm (Width x Length x Height)
400×400 mm. Pallet Quantity 300 pcs. Pallet Size 100 x 120 x 240 cm (Width x Length x Height)
500×500 mm. Pallet Quantity 192 pcs. Pallet Size 100 x 120 x 235 cm (Width x Length x Height)
600×600 mm. Pallet Quantity 144 pcs. Pallet Size 100 x 135 x 210 cm (Width x Length x Height)
Product Description
In suspended ceiling and partition wall systems, electrical panels, fuse boxes, water valves, etc. located in the space between the wall and the ceiling. It is the building material that allows access to the plumbing system that needs to be accessed. Intervention covers consist of an inner and outer frame. The frames are made of aluminum raw material and are electrostatic powder coated. Moving and fixed materials on the system It is produced from specially coated, corrosion-resistant galvanized raw material.
Instructions for Use
The mounting space of the intervention cover must be +6mm larger than the mounting cover dimension. Switches in wall applications should be at the top. After assembling the outer frame of the intervention cover, the inner frame must be removed and the plastering and painting processes must be carried out separately.
Product Storage Conditions
The surface sensitivity of all intervention covers and painted products should also be checked after the cover installation. In order for the system to work properly, the products must be placed on a flat surface without any impact due to the plaster plate inside.
