Zepro

Order Code Product Type Package Quantity
4120 200mm x 200mm x 12,5mm 10 Pcs
4130 300mm x 300mm x 12,5mm 10 Pcs
4136 300mm x 600mm x 12,5mm 10 Pcs
4140 400mm x 400mm x 12,5mm 10 Pcs
4146 400mm x 600mm x 12,5mm 8 Pcs
4145 450mm x 450mm x 12,5mm 8 Pcs
4150 500mm x 500mm x 12,5mm 8 Pcs
4160 600mm x 600mm x 12,5mm 6 Pcs

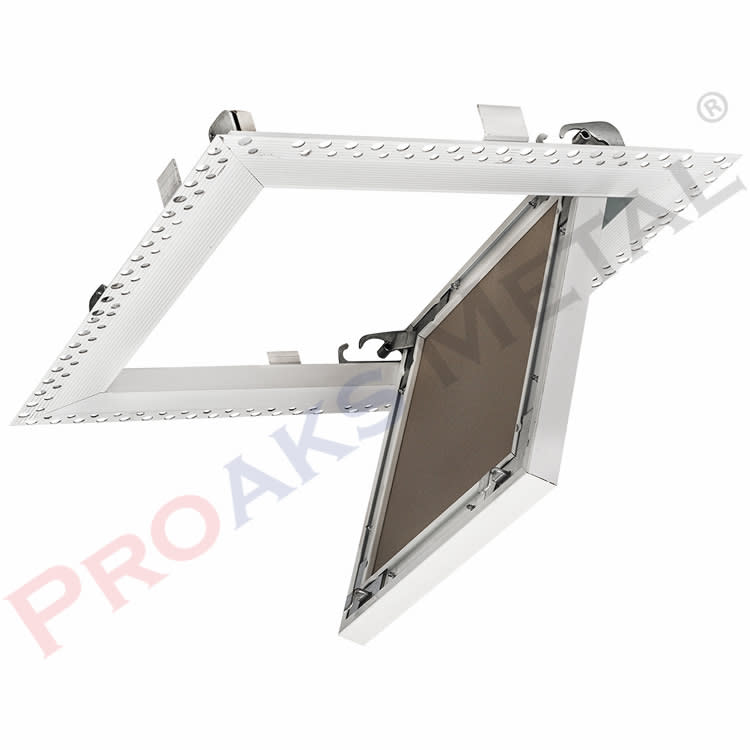

Zepro access panels are applied to the installation areas by snapping from the bottom. Thanks to its perforated outer frame structure, Zepro access panels allow plastering to be applied to the edge by allowing plastering in areas where the frame is opened wide. For fixing the outer frame in assembly applications it is fixed by screwing on the special moving edge profiles. In appearance, the sill part is visible as 3.5 cm from all sides.

Zepro it is touch-sensitive. However aluminum inside and outside frame work with hidden screwing technique. Also the inner cover is assemble with aluminum composite.

Zepro Access Panels Features

  • Aluminum inner and outer frame,
  • Bristle wicks installed with a special channel design that provides light and dust isolation between the outer cover and the inner cover,

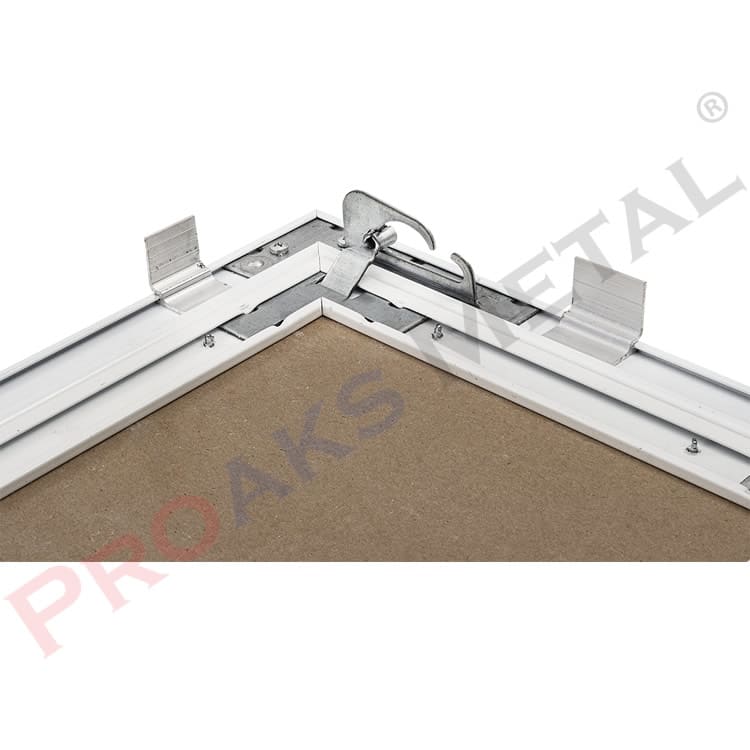

  • Detachable switch system that provides touch-sensitive opening,
  • Inner cover that can be completely separated from the outer cover,
  • Wire system that ensures that the inner cover remains fixed at a certain angle,
  • Cover model whose surface is hidden by plaster,
Zepro Access Panels Drawings
Order CodeDimensionsMounting Cover DimensionsOuter Cover DimensionsInner Cover DimensionsFrame HeightGross Weight (gr.)Pieces
A1xB1A2xB2A3xB3T1xT2
4120200×200198×198244×244194×19412,5×60750 g10 pcs
4130300×300298×298344×344294×29412,5×601425 g10 pcs
4136300×600298×598344×644294×59412,5×602260 g10 pcs
4140400×400398×398444×444394×39412,5×602150 g10 pcs
4146400×600398×598444×644394×59412,5×602890 g8 pcs
4145450×450448×448494×494444×44412,5×602520 g8 pcs
4150500×500498×498544×544494×49412,5×602890 g8 pcs
4160600×600598×598644×644594×59412,5×603615 g6 pcs

Pallet Content

200×200 mm. Pallet Quantity 560 pcs. Pallet Size 80 x 120 x 200 cm (Width x Length x Height)

300×300 mm. Pallet Quantity 540 pcs. Pallet Size 110 x 130 x 225 cm (Width x Length x Height)

400×400 mm. Pallet Quantity 300 pcs. Pallet Size 100 x 120 x 240 cm (Width x Length x Height)

500×500 mm. Pallet Quantity 192 pcs. Pallet Size 100 x 120 x 235 cm (Width x Length x Height)

600×600 mm. Pallet Quantity 144 pcs. Pallet Size 100 x 135 x 210 cm (Width x Length x Height)

Product Description

In suspended ceiling and partition wall systems, electrical panels, fuse boxes, water valves, etc. located in the space between the wall and the ceiling. It is the building material that allows access to the plumbing system that needs to be accessed. Intervention covers consist of an inner and outer frame. The frames are made of aluminum raw material and are electrostatic powder coated. Moving and fixed materials on the system It is produced from specially coated, corrosion-resistant galvanized raw material.

Instructions for Use

The mounting space of the intervention cover must be +6mm larger than the mounting cover dimension. Switches in wall applications should be at the top. After assembling the outer frame of the intervention cover, the inner frame must be removed and the plastering and painting processes must be carried out separately.

Product Storage Conditions

The surface sensitivity of all intervention covers and painted products should also be checked after the cover installation. In order for the system to work properly, the products must be placed on a flat surface without any impact due to the plaster plate inside.
