Prostar Aluminum

Order Code Product Type Package Quantity
3220 200mm x 200mm x 12,5mm 10 Pcs
3230 300mm x 300mm x 12,5mm 10 Pcs
3236 300mm x 600mm x 12,5mm 10 Pcs
3240 400mm x 400mm x 12,5mm 10 Pcs
3246 400mm x 600mm x 12,5mm 8 Pcs
3245 450mm x 450mm x 12,5mm 8 Pcs
3250 500mm x 500mm x 12,5mm 8 Pcs
3260 600mm x 600mm x 12,5mm 6 Pcs

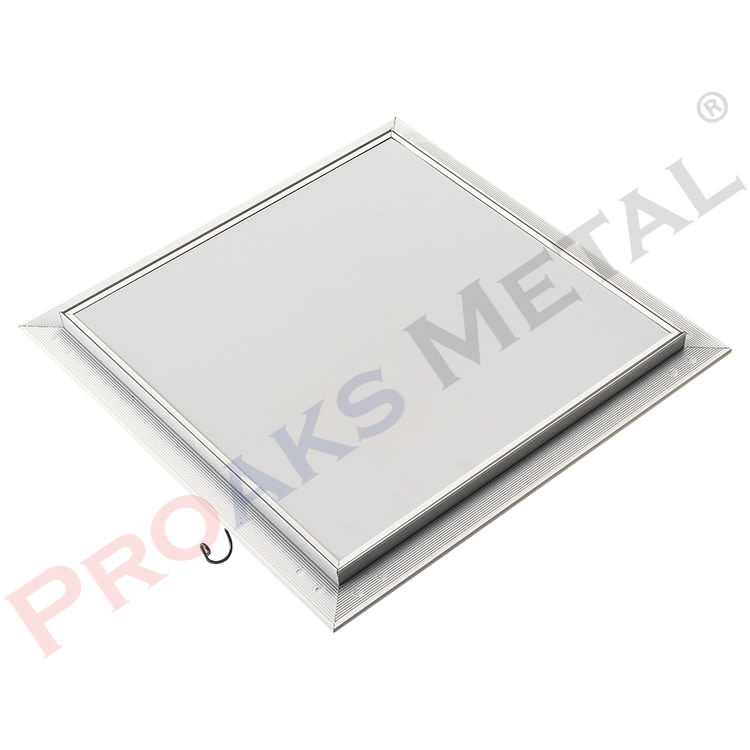

Prostar Aluminum access panels are applied from the top to the places where they will be installed. Due to the teethed structure of the inner frame inside the cover, there is no need to remove the plaster after application. It is painted and the assembly is completed without any delay. Prostar plasterboard access panels are suitable for 12.5 mm thick plasterboards.

Prostar aluminum access panel features;

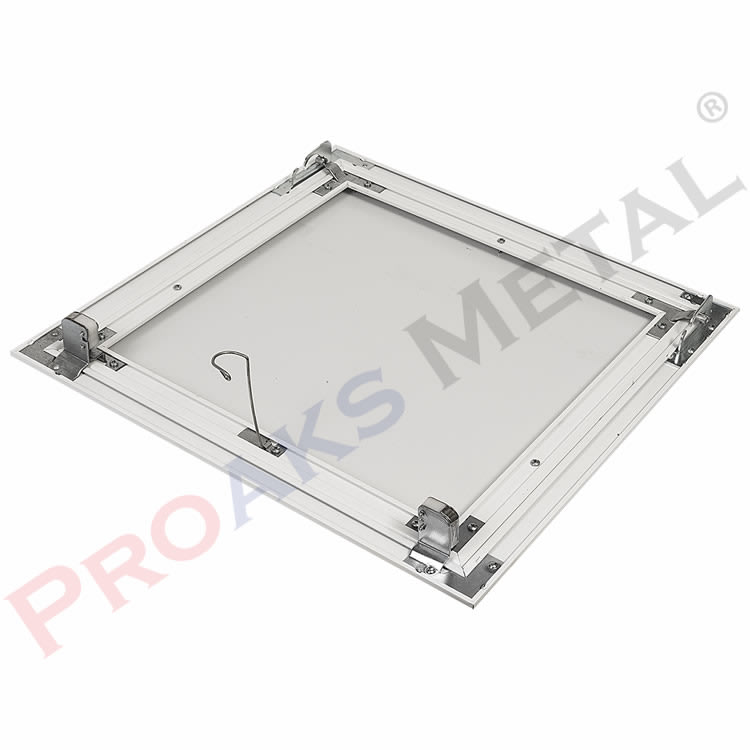

Prostar Aluminum Inner Cover Features

  • Mounting of the inner cover with aluminum composite by the secret screwing technique
  • Aluminum inside and outside frame

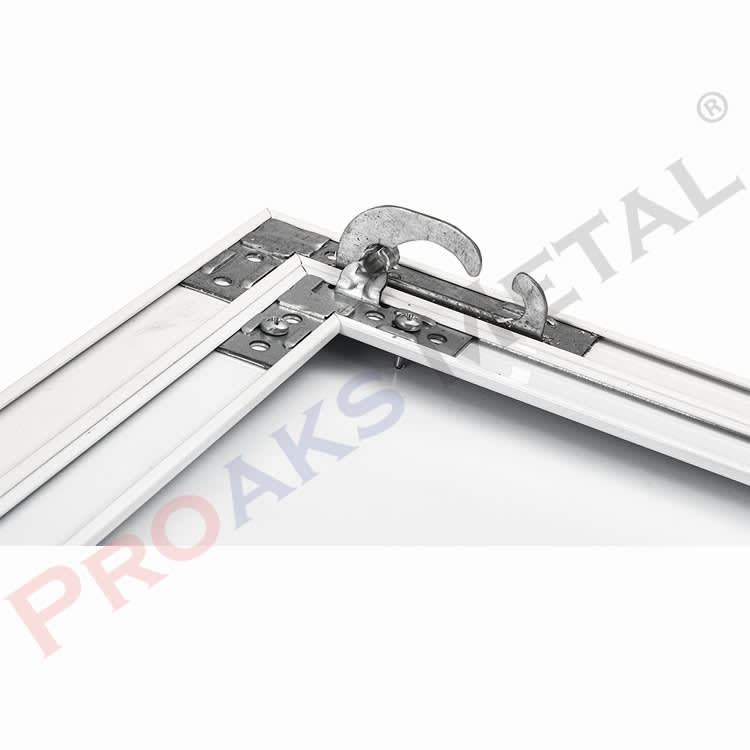

  • Also removable swich system for touch opening

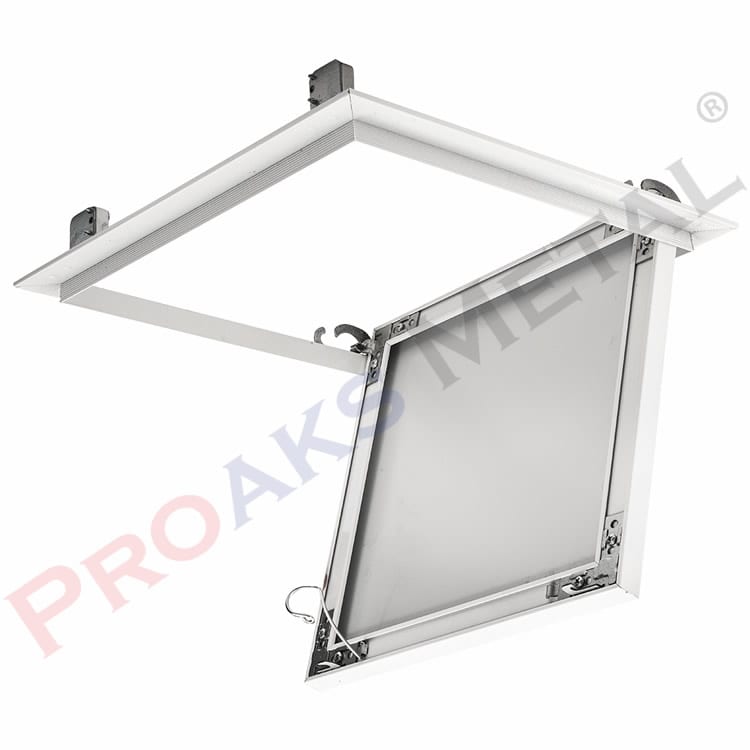

  • Fully removable inner cover from outer cover

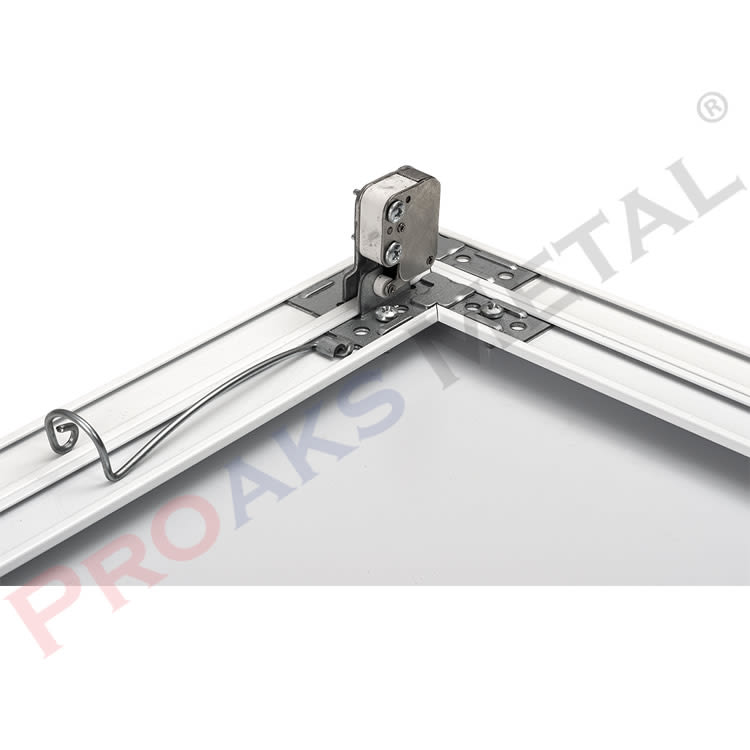

  • Finally wire system to keep the inner cover constant at a certain angle

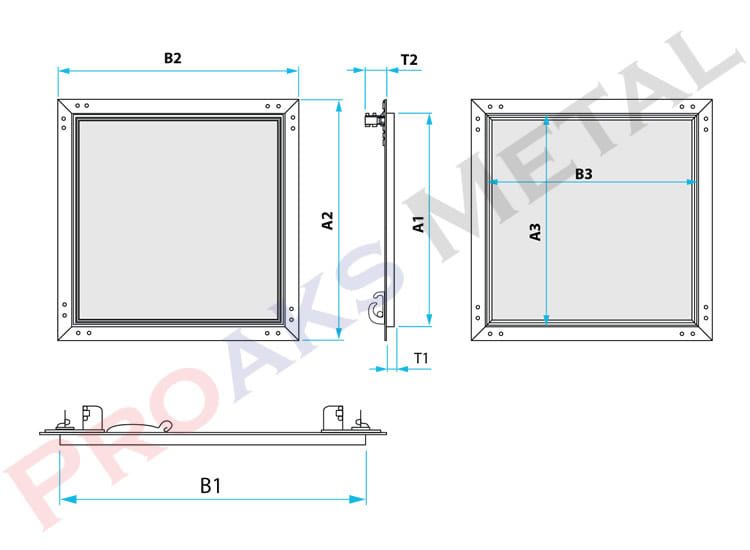

Prostar Aluminum Access Panels Drawings
Order CodeDimensionsMounting Cover DimensionsOuter Cover DimensionsInner Cover DimensionsFrame HeightGross Weight (gr.)Pieces
A1xB1A2xB2A3xB3T1xT2
3220200×200198×198244×244194×19412,5×60550 g10 pcs
3230300×300298×298344×344294×29412,5×60905 g10 pcs
3236300×600298×598344×644294×59412,5×601350 g10 pcs
3240400×400398×398444×444394×39412,5×601260 g10 pcs
3246400×600398×598444×644394×59412,5×601620 g8 pcs
3245450×450448×448494×494444×44412,5×601440 g8 pcs
3250500×500498×498544×544494×49412,5×601620 g8 pcs
3260600×600598×598644×644594×59412,5×601970 g6 pcs

Pallet Content

200×200 mm. Pallet Quantity 560 pcs. Pallet Size 80 x 120 x 200 cm (Width x Length x Height)

300×300 mm. Pallet Quantity 540 pcs. Pallet Size 110 x 130 x 225 cm (Width x Length x Height)

400×400 mm. Pallet Quantity 300 pcs. Pallet Size 100 x 120 x 240 cm (Width x Length x Height)

500×500 mm. Pallet Quantity 192 pcs. Pallet Size 100 x 120 x 235 cm (Width x Length x Height)

600×600 mm. Pallet Quantity 144 pcs. Pallet Size 100 x 135 x 210 cm (Width x Length x Height)

Product Description

In suspended ceiling and partition wall systems, electrical panels, fuse boxes, water valves, etc. located in the space between the wall and the ceiling. It is the building material that allows access to the plumbing system that needs to be accessed. Intervention covers consist of an inner and outer frame. The frames are made of aluminum raw material and are electrostatic powder coated. Moving and fixed materials on the system It is produced from specially coated, corrosion-resistant galvanized raw material.

Instructions for Use

The mounting space of the intervention cover must be +6mm larger than the mounting cover dimension. Switches in wall applications should be at the top. After assembling the outer frame of the intervention cover, the inner frame must be removed and the plastering and painting processes must be carried out separately.

Product Storage Conditions

The surface sensitivity of all intervention covers and painted products should also be checked after the cover installation. In order for the system to work properly, the products must be placed on a flat surface without any impact due to the plaster plate inside.
