Prostar Square Honeycomb

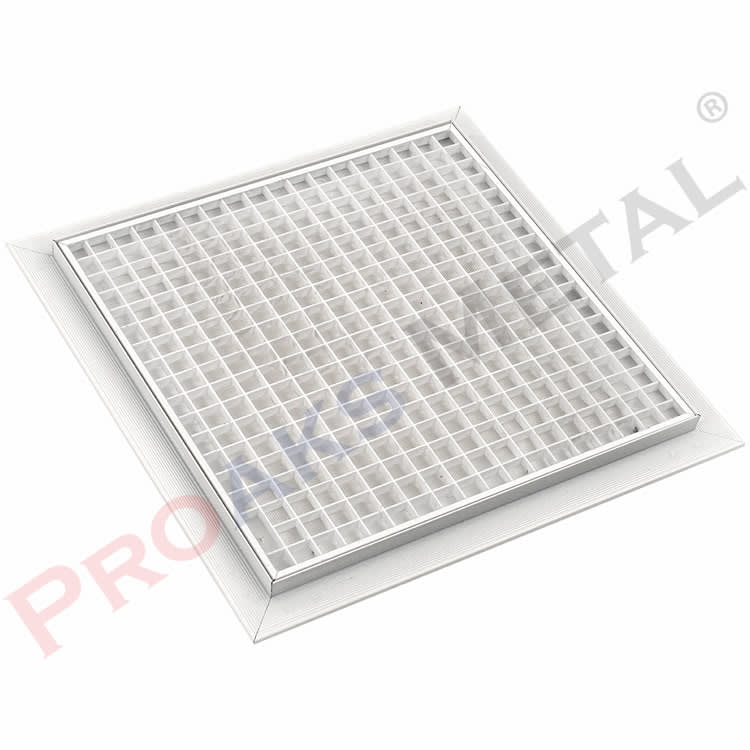

Prostar square honeycomb access panels are applied from the top to the places where they will be installed. It is used where there are ventilation and air conditioning outlets. It is dustproof thanks to the special lining inside. Prostar square honeycomb access panels are suitable for 12.5 mm thick plasterboards.

Prostar square honeycomb revision cover features;

Prostar Square Honeycomb Access Panels Features

• Aluminum inside and outside frame
• Mounting of plastic square honeycomb with concealed screwing technique

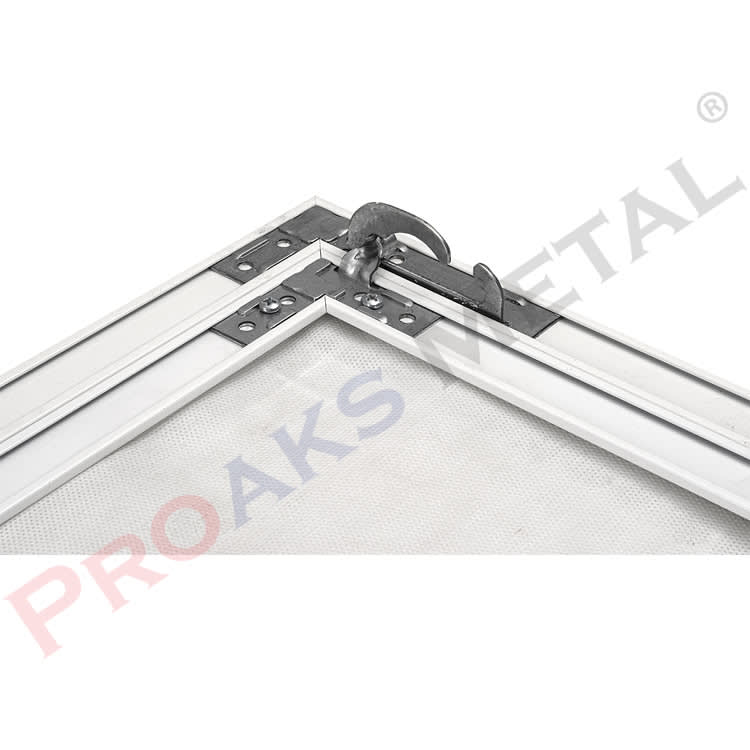

• Also removable swich system for touch opening

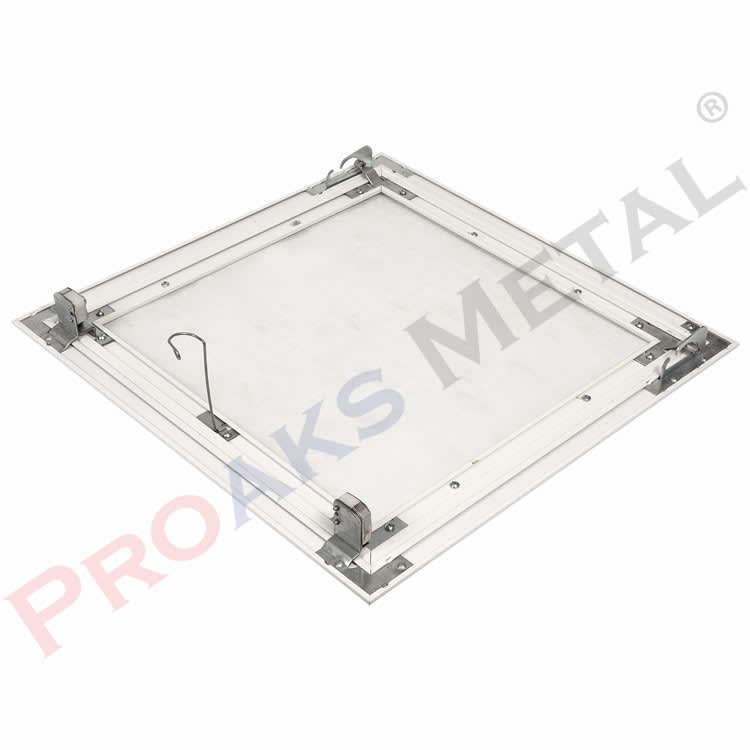

• Fully removable inner cover from outer cover

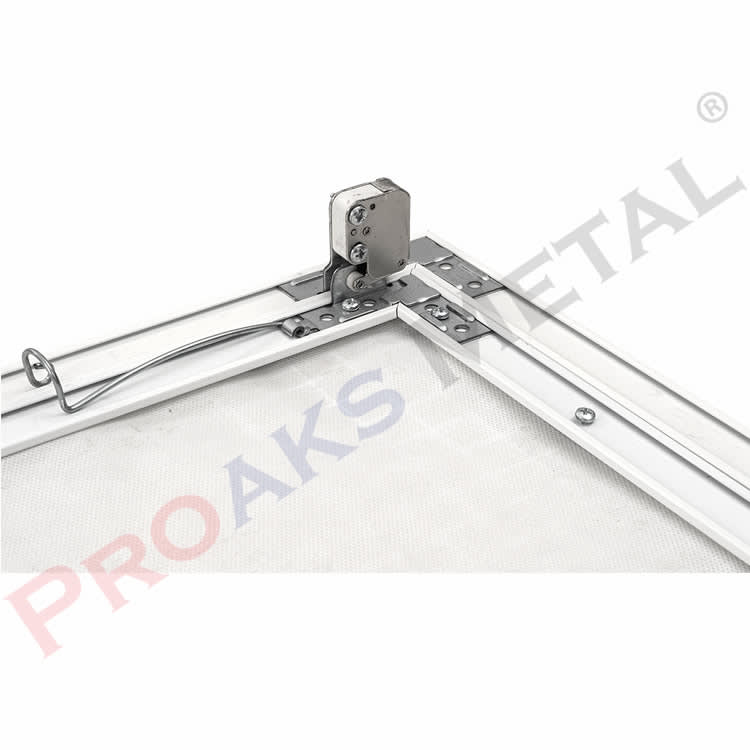

• Finally wire system to keep the inner cover constant at a certain angle

Order Code	Dimensions	Mounting Cover Dimensions	Outer Cover Dimensions	Inner Cover Dimensions	Frame Height	Gross Weight (gr.)	Pieces
		A1xB1	A2xB2	A3xB3	T1xT2
3320	200×200	198×198	244×244	194×194	12,5×60	630 g	10 pcs
3330	300×300	298×298	344×344	294×294	12,5×60	820 g	10 pcs
3336	300×600	298×598	344×644	294×594	12,5×60	1100 g	10 pcs
3340	400×400	398×398	444×444	394×394	12,5×60	910 g	10 pcs
3346	400×600	398×598	444×644	394×594	12,5×60	1195 g	8 pcs
3345	450×450	448×448	494×494	444×444	12,5×60	1055 g	8 pcs
3350	500×500	498×498	544×544	494×494	12,5×60	1195 g	8 pcs
3360	600×600	598×598	644×644	594×594	12,5×60	1385 g	6 pcs

---

Pallet Content

200×200 mm. Pallet Quantity 560 pcs. Pallet Size 80 x 120 x 200 cm (Width x Length x Height)

300×300 mm. Pallet Quantity 540 pcs. Pallet Size 110 x 130 x 225 cm (Width x Length x Height)

400×400 mm. Pallet Quantity 300 pcs. Pallet Size 100 x 120 x 240 cm (Width x Length x Height)

500×500 mm. Pallet Quantity 192 pcs. Pallet Size 100 x 120 x 235 cm (Width x Length x Height)

600×600 mm. Pallet Quantity 144 pcs. Pallet Size 100 x 135 x 210 cm (Width x Length x Height)

Product Description

In suspended ceiling and partition wall systems, electrical panels, fuse boxes, water valves, etc. located in the space between the wall and the ceiling. It is the building material that allows access to the plumbing system that needs to be accessed. Intervention covers consist of an inner and outer frame. The frames are made of aluminum raw material and are electrostatic powder coated. Moving and fixed materials on the system It is produced from specially coated, corrosion-resistant galvanized raw material.

Instructions for Use

The mounting space of the intervention cover must be +6mm larger than the mounting cover dimension. Switches in wall applications should be at the top. After assembling the outer frame of the intervention cover, the inner frame must be removed and the plastering and painting processes must be carried out separately.

Product Storage Conditions

The surface sensitivity of all intervention covers and painted products should also be checked after the cover installation. In order for the system to work properly, the products must be placed on a flat surface without any impact due to the plaster plate inside.
