Z Profile

Order Code Product Type Package Quantity
1112 Aluminum Z 10mm 50 Pcs x 3m
1113 Aluminum Z 15mm 50 Pcs x 3m
1114 Aluminum Z 20mm 25 Pcs x 3m
1115 Aluminum Z 25mm 25 Pcs x 3m
1116 Aluminum Z 30mm 25 Pcs x 3m
1117 Galvanized Z 10mm 50 Pcs x 3m
1118 Galvanized Z 15mm 50 Pcs x 3m
1119 Galvanized Z 20mm 25 Pcs x 3m
1120 Galvanized Z 25mm 25 Pcs x 3m
1122 Pvc Z 15mm 25 Pcs x 3m

Z profile is produce in three different ways: galvanized, aluminum and PVC. Application areas, dimensions, price of plasterboard suspended ceiling and gypsum board.

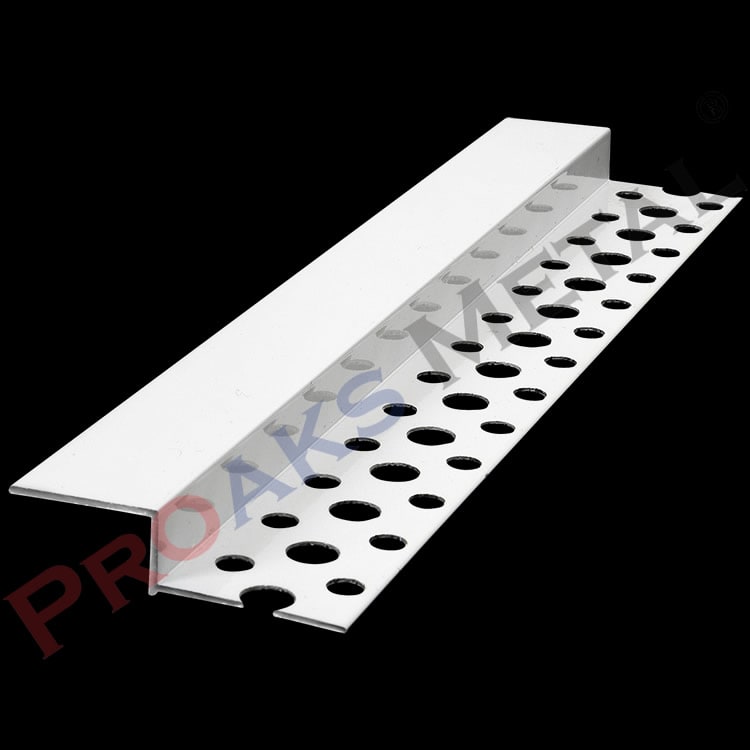

Firstly Aluminum Z Profile creates an aesthetic appearance between different materials such as gypsum board and door and window frames, ceilings and floors.

When we look at the properties of the Z aluminum profile, it can be use to finish the drywall above or below the vertical walls. It can also be place in the Kerf slots along the door and window frames.

Plasterboard Z profile offers many of the profile with aluminum alignment inserts to simplify the assembly process and create sharp and clean curved joints and lines.

Z Profiles Types

  • Aluminum Z Profile
  • Galvanized Z Profile
  • Pvc Z Profile

Also this profile; when the extra body and the insulation are placed on the inside of the outer walls, they are use as a section for the floor covering. For the installation of extra insulation layers, it is appropriate to use Z-shaped aluminum profile for the construction of the inner body of the outer walls.

Application Areas

Application areas of are list below.

  • Industrial buildings, companies, companies, houses, shops
  • Corridors, halls and warehouses
  • Extension, expansion and renewal areas


Z Profiles create an ornament or arrangement between doors and windows or between walls and floors.

Gypsum board profile Z, with the tapered nail flanges, creates a shadow that appears when the ornament is use at the bottom of the doors, windows and walls.

The tapered flange allows the application of tape and joint compound to achieve a clean surface.

The basic is use as the primary frame element to support wall cladding systems and other framing applications. The “simple” design, together with the rigid insulation board and other pad, make installation easier and more cost-effective.

How to Install?

To ensure proper installation, place your this Profile in a lengthy and dry position.

Z Place your profile with the Spray Adhesive and staple combination.

For the strongest adhesion, spray onto the profile and plasterboard with spray adhesive.

Press the into place with your installation tool or the handle of your sludge knife.

Staple the mud feet of the every 6 to 8 cm.

Finish off, sanding and painting your profile as you normally would.

Primer is not require and always use a high quality paint.

Use a drywall compound additive to increase adhesion and strong handling of your drywall compound.

Finally please contact us for the price of this profile. You can see detailed information about plasterboard profile.
